Datapoints for p + ne23 -> na24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.148298e-09 |
| 0.15 | 8.433865e-07 |
| 0.2 | 1.848487e-05 |
| 0.3 | 7.887902e-04 |
| 0.4 | 8.392565e-03 |
| 0.5 | 4.584320e-02 |
| 0.6 | 1.692516e-01 |
| 0.7 | 4.831404e-01 |
| 0.8 | 1.150560e+00 |
| 0.9 | 2.396322e+00 |
| 1 | 4.503885e+00 |
| 1.5 | 4.085510e+01 |
| 2 | 1.584510e+02 |
| 2.5 | 4.064194e+02 |
| 3 | 8.242238e+02 |
| 3.5 | 1.442267e+03 |
| 4 | 2.283786e+03 |
| 4.5 | 3.365100e+03 |
| 5 | 4.694185e+03 |
| 6 | 8.070875e+03 |
| 7 | 1.221564e+04 |
| 8 | 1.666446e+04 |
| 9 | 2.072238e+04 |
| 10 | 2.361398e+04 |

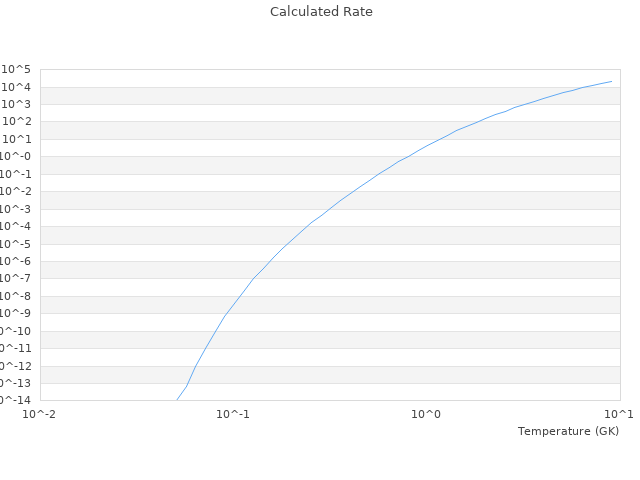

| View Graph | |
