Datapoints for p + ne23 -> n + na23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.813971e-05 |
| 0.15 | 5.696044e-03 |
| 0.2 | 1.280670e-01 |
| 0.3 | 5.827002e+00 |
| 0.4 | 6.556639e+01 |
| 0.5 | 3.742424e+02 |
| 0.6 | 1.429031e+03 |
| 0.7 | 4.184868e+03 |
| 0.8 | 1.015919e+04 |
| 0.9 | 2.146230e+04 |
| 1 | 4.075647e+04 |
| 1.5 | 3.754429e+05 |
| 2 | 1.436002e+06 |
| 2.5 | 3.595563e+06 |
| 3 | 7.098683e+06 |
| 3.5 | 1.209775e+07 |
| 4 | 1.869045e+07 |
| 4.5 | 2.693251e+07 |
| 5 | 3.683122e+07 |
| 6 | 6.128301e+07 |
| 7 | 9.047239e+07 |
| 8 | 1.211084e+08 |
| 9 | 1.484004e+08 |
| 10 | 1.670789e+08 |

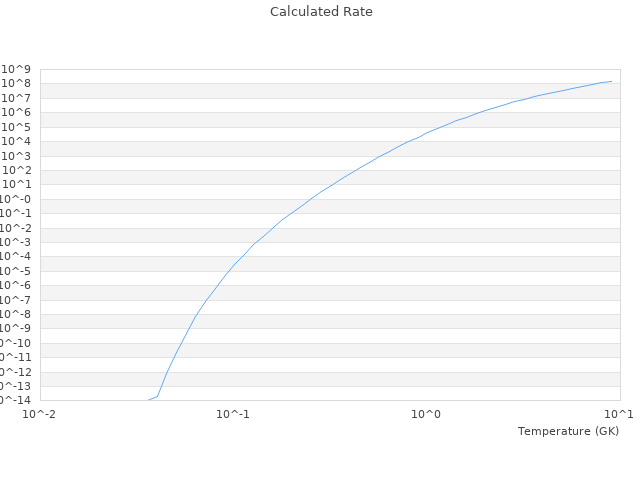

| View Graph | |
