Datapoints for p + ne24 -> n + na24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.004493e-05 |
| 0.15 | 6.112305e-03 |
| 0.2 | 1.384801e-01 |
| 0.3 | 6.408317e+00 |
| 0.4 | 7.311931e+01 |
| 0.5 | 4.215650e+02 |
| 0.6 | 1.620637e+03 |
| 0.7 | 4.766010e+03 |
| 0.8 | 1.159664e+04 |
| 0.9 | 2.452070e+04 |
| 1 | 4.655655e+04 |
| 1.5 | 4.251161e+05 |
| 2 | 1.606308e+06 |
| 2.5 | 3.980433e+06 |
| 3 | 7.801099e+06 |
| 3.5 | 1.323817e+07 |
| 4 | 2.041956e+07 |
| 4.5 | 2.944031e+07 |
| 5 | 4.034883e+07 |
| 6 | 6.763374e+07 |
| 7 | 1.007237e+08 |
| 8 | 1.358431e+08 |
| 9 | 1.671564e+08 |
| 10 | 1.880722e+08 |

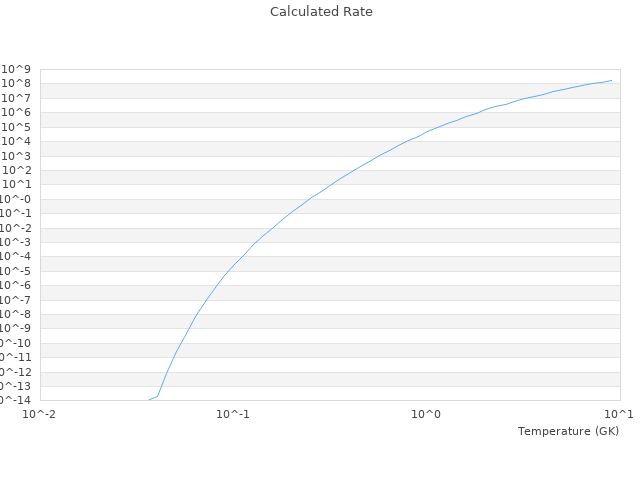

| View Graph | |
