Datapoints for he4 + ne24 -> mg28
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.508879e-29 |
| 0.15 | 2.339286e-23 |
| 0.2 | 6.274004e-20 |
| 0.3 | 9.654464e-16 |
| 0.4 | 3.930784e-13 |
| 0.5 | 2.792933e-11 |
| 0.6 | 7.204480e-10 |
| 0.7 | 9.641137e-09 |
| 0.8 | 8.170621e-08 |
| 0.9 | 4.955078e-07 |
| 1 | 2.329487e-06 |
| 1.5 | 5.151447e-04 |
| 2 | 1.399239e-02 |
| 2.5 | 1.345761e-01 |
| 3 | 7.077358e-01 |
| 3.5 | 2.528602e+00 |
| 4 | 6.936569e+00 |
| 4.5 | 1.574726e+01 |
| 5 | 3.106145e+01 |
| 6 | 8.964469e+01 |
| 7 | 1.971008e+02 |
| 8 | 3.617964e+02 |
| 9 | 5.853836e+02 |
| 10 | 8.639016e+02 |

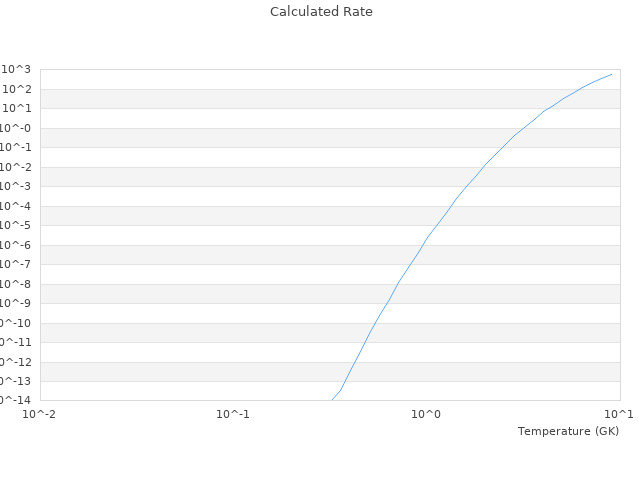

| View Graph | |
