Datapoints for p + ne26 -> na27
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.823863e-10 |
| 0.15 | 1.809196e-07 |
| 0.2 | 4.072644e-06 |
| 0.3 | 1.863344e-04 |
| 0.4 | 2.115954e-03 |
| 0.5 | 1.219263e-02 |
| 0.6 | 4.695593e-02 |
| 0.7 | 1.385099e-01 |
| 0.8 | 3.382746e-01 |
| 0.9 | 7.181630e-01 |
| 1 | 1.369241e+00 |
| 1.5 | 1.275555e+01 |
| 2 | 4.902314e+01 |
| 2.5 | 1.232287e+02 |
| 3 | 2.445178e+02 |
| 3.5 | 4.195559e+02 |
| 4 | 6.538004e+02 |
| 4.5 | 9.518029e+02 |
| 5 | 1.316770e+03 |
| 6 | 2.248373e+03 |
| 7 | 3.411835e+03 |
| 8 | 4.692266e+03 |
| 9 | 5.894054e+03 |
| 10 | 6.777773e+03 |

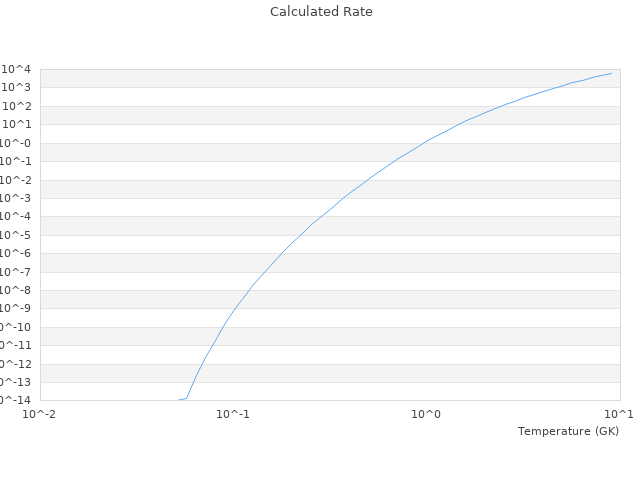

| View Graph | |
