Datapoints for he4 + ne36 -> mg40
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.444651e-30 |
| 0.15 | 2.337561e-24 |
| 0.2 | 7.357152e-21 |
| 0.3 | 1.451743e-16 |
| 0.4 | 7.190119e-14 |
| 0.5 | 5.960526e-12 |
| 0.6 | 1.734640e-10 |
| 0.7 | 2.550283e-09 |
| 0.8 | 2.325397e-08 |
| 0.9 | 1.492530e-07 |
| 1 | 7.329955e-07 |
| 1.5 | 1.788683e-04 |
| 2 | 4.876724e-03 |
| 2.5 | 4.569657e-02 |
| 3 | 2.328341e-01 |
| 3.5 | 8.089035e-01 |
| 4 | 2.172080e+00 |
| 4.5 | 4.859876e+00 |
| 5 | 9.503292e+00 |
| 6 | 2.726240e+01 |
| 7 | 5.981315e+01 |
| 8 | 1.086069e+02 |
| 9 | 1.704708e+02 |
| 10 | 2.372040e+02 |

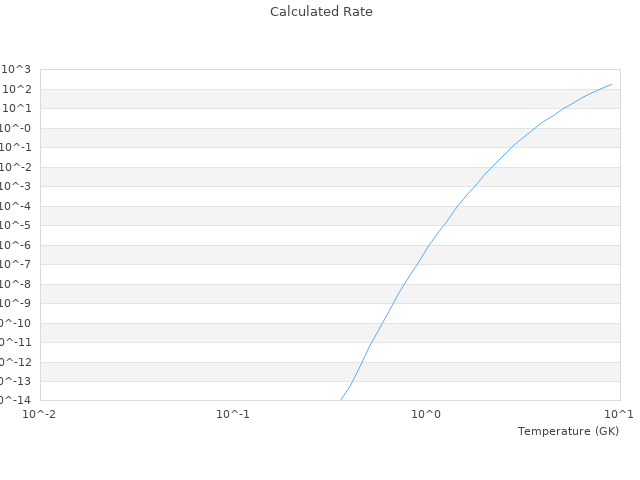

| View Graph | |
