Datapoints for p + ne40 -> n + na40
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.293463e-04 |
| 0.15 | 3.661401e-02 |
| 0.2 | 9.334013e-01 |
| 0.3 | 4.770714e+01 |
| 0.4 | 5.768288e+02 |
| 0.5 | 3.487047e+03 |
| 0.6 | 1.397782e+04 |
| 0.7 | 4.266708e+04 |
| 0.8 | 1.073039e+05 |
| 0.9 | 2.335704e+05 |
| 1 | 4.548027e+05 |
| 1.5 | 4.489193e+06 |
| 2 | 1.725366e+07 |
| 2.5 | 4.173389e+07 |
| 3 | 7.759659e+07 |
| 3.5 | 1.224304e+08 |
| 4 | 1.730626e+08 |
| 4.5 | 2.262912e+08 |
| 5 | 2.791740e+08 |
| 6 | 3.738465e+08 |
| 7 | 4.406045e+08 |
| 8 | 4.693884e+08 |
| 9 | 4.576486e+08 |
| 10 | 4.106209e+08 |

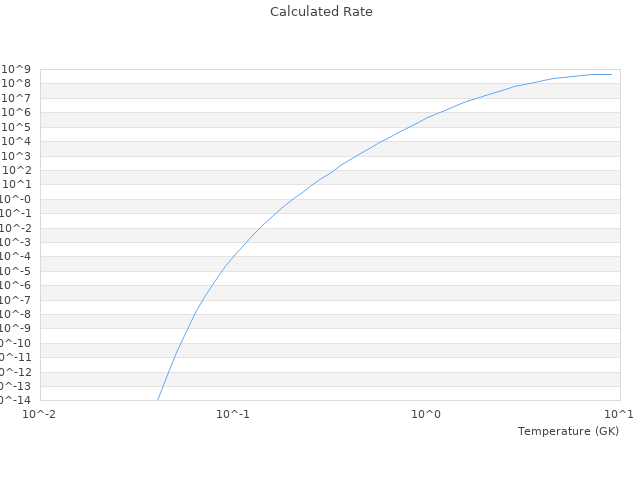

| View Graph | |
