Datapoints for he4 + na19 -> al23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.512665e-33 |
| 0.15 | 2.842805e-26 |
| 0.2 | 1.938157e-22 |
| 0.3 | 7.652262e-18 |
| 0.4 | 4.962603e-15 |
| 0.5 | 4.672925e-13 |
| 0.6 | 1.466717e-11 |
| 0.7 | 2.283453e-10 |
| 0.8 | 2.193567e-09 |
| 0.9 | 1.483459e-08 |
| 1 | 7.691186e-08 |
| 1.5 | 2.527143e-05 |
| 2 | 9.293154e-04 |
| 2.5 | 1.133728e-02 |
| 3 | 7.179182e-02 |
| 3.5 | 2.961746e-01 |
| 4 | 9.074644e-01 |
| 4.5 | 2.242273e+00 |
| 5 | 4.721261e+00 |
| 6 | 1.495983e+01 |
| 7 | 3.535498e+01 |
| 8 | 7.013390e+01 |
| 9 | 1.258220e+02 |
| 10 | 2.145908e+02 |

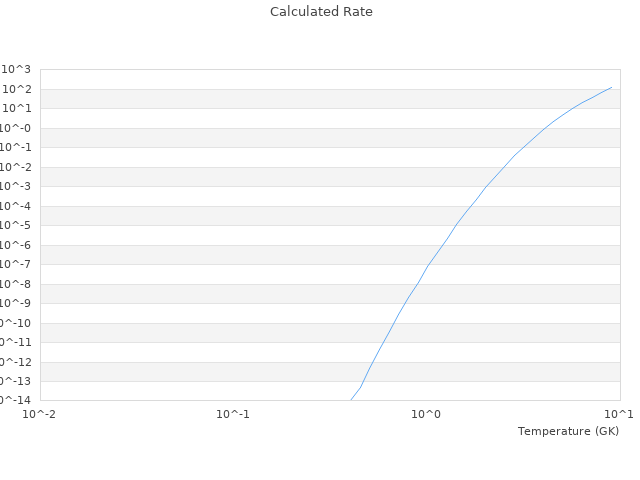

| View Graph | |
