Datapoints for he4 + na20 -> al24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.215587e-32 |
| 0.15 | 3.986245e-26 |
| 0.2 | 2.846385e-22 |
| 0.3 | 1.182845e-17 |
| 0.4 | 7.914347e-15 |
| 0.5 | 7.623157e-13 |
| 0.6 | 2.435527e-11 |
| 0.7 | 3.846902e-10 |
| 0.8 | 3.740286e-09 |
| 0.9 | 2.555461e-08 |
| 1 | 1.336584e-07 |
| 1.5 | 4.523687e-05 |
| 2 | 1.690481e-03 |
| 2.5 | 2.081770e-02 |
| 3 | 1.326074e-01 |
| 3.5 | 5.493743e-01 |
| 4 | 1.689256e+00 |
| 4.5 | 4.188987e+00 |
| 5 | 8.855974e+00 |
| 6 | 2.836093e+01 |
| 7 | 6.804895e+01 |
| 8 | 1.377767e+02 |
| 9 | 2.537221e+02 |
| 10 | 4.468206e+02 |

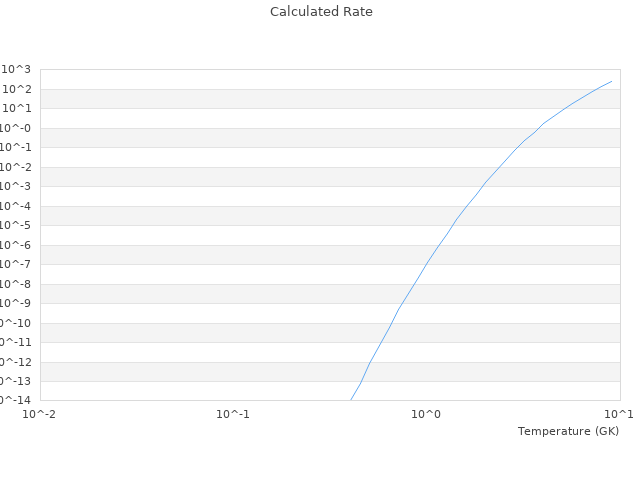

| View Graph | |
