Datapoints for he4 + ne23 -> p + na26
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.071391e-165 |
| 0.15 | 7.251317e-111 |
| 0.2 | 3.146183e-83 |
| 0.3 | 3.041609e-55 |
| 0.4 | 5.383021e-41 |
| 0.5 | 2.663779e-32 |
| 0.6 | 2.053022e-26 |
| 0.7 | 3.778368e-22 |
| 0.8 | 6.571811e-19 |
| 0.9 | 2.334032e-16 |
| 1 | 2.697181e-14 |
| 1.5 | 5.988547e-08 |
| 2 | 1.197085e-04 |
| 2.5 | 1.331887e-02 |
| 3 | 3.393257e-01 |
| 3.5 | 3.675212e+00 |
| 4 | 2.315827e+01 |
| 4.5 | 1.012072e+02 |
| 5 | 3.409959e+02 |
| 6 | 2.269551e+03 |
| 7 | 9.352330e+03 |
| 8 | 2.782861e+04 |
| 9 | 6.493542e+04 |
| 10 | 1.245684e+05 |

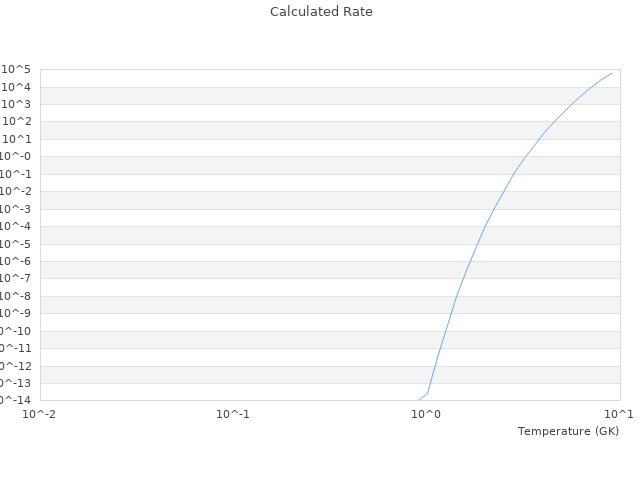

| View Graph | |
