Datapoints for p + na33 -> he4 + ne30
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.786335e-09 |
| 0.15 | 5.419318e-07 |
| 0.2 | 1.505691e-05 |
| 0.3 | 8.916733e-04 |
| 0.4 | 1.198706e-02 |
| 0.5 | 7.812873e-02 |
| 0.6 | 3.306139e-01 |
| 0.7 | 1.050126e+00 |
| 0.8 | 2.720924e+00 |
| 0.9 | 6.060139e+00 |
| 1 | 1.201668e+01 |
| 1.5 | 1.259065e+02 |
| 2 | 5.105798e+02 |
| 2.5 | 1.322987e+03 |
| 3 | 2.685091e+03 |
| 3.5 | 4.706566e+03 |
| 4 | 7.503686e+03 |
| 4.5 | 1.120399e+04 |
| 5 | 1.593971e+04 |
| 6 | 2.897604e+04 |
| 7 | 4.707322e+04 |
| 8 | 6.938829e+04 |
| 9 | 9.314512e+04 |
| 10 | 1.137241e+05 |

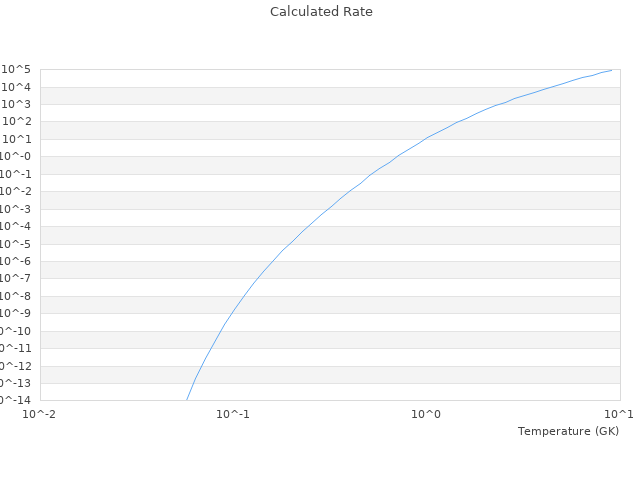

| View Graph | |
