Datapoints for he4 + mg20 -> p + al23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.913113e-29 |
| 0.15 | 1.550277e-22 |
| 0.2 | 1.300236e-18 |
| 0.3 | 8.337804e-14 |
| 0.4 | 8.343949e-11 |
| 0.5 | 1.125289e-08 |
| 0.6 | 4.741901e-07 |
| 0.7 | 9.411094e-06 |
| 0.8 | 1.106340e-04 |
| 0.9 | 8.864430e-04 |
| 1 | 5.306346e-03 |
| 1.5 | 2.799004e+00 |
| 2 | 1.333072e+02 |
| 2.5 | 1.915351e+03 |
| 3 | 1.360624e+04 |
| 3.5 | 6.116330e+04 |
| 4 | 1.999863e+05 |
| 4.5 | 5.180799e+05 |
| 5 | 1.124373e+06 |
| 6 | 3.587287e+06 |
| 7 | 7.883082e+06 |
| 8 | 1.328512e+07 |
| 9 | 1.832007e+07 |
| 10 | 2.155016e+07 |

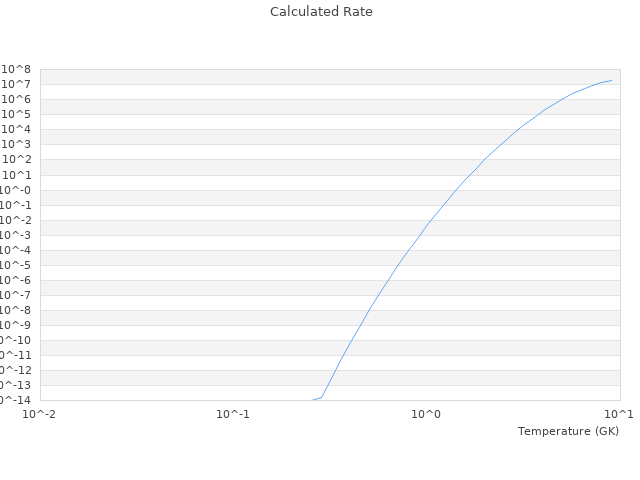

| View Graph | |
