Datapoints for n + mg21 -> he4 + ne18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.387339e+07 |
| 0.15 | 3.753274e+07 |
| 0.2 | 4.075645e+07 |
| 0.3 | 4.680562e+07 |
| 0.4 | 5.254274e+07 |
| 0.5 | 5.801939e+07 |
| 0.6 | 6.325459e+07 |
| 0.7 | 6.826207e+07 |
| 0.8 | 7.305362e+07 |
| 0.9 | 7.763976e+07 |
| 1 | 8.203004e+07 |
| 1.5 | 1.013291e+08 |
| 2 | 1.168299e+08 |
| 2.5 | 1.292290e+08 |
| 3 | 1.390891e+08 |
| 3.5 | 1.468730e+08 |
| 4 | 1.529640e+08 |
| 4.5 | 1.576799e+08 |
| 5 | 1.612845e+08 |
| 6 | 1.659994e+08 |
| 7 | 1.684549e+08 |
| 8 | 1.695847e+08 |
| 9 | 1.700401e+08 |
| 10 | 1.702802e+08 |

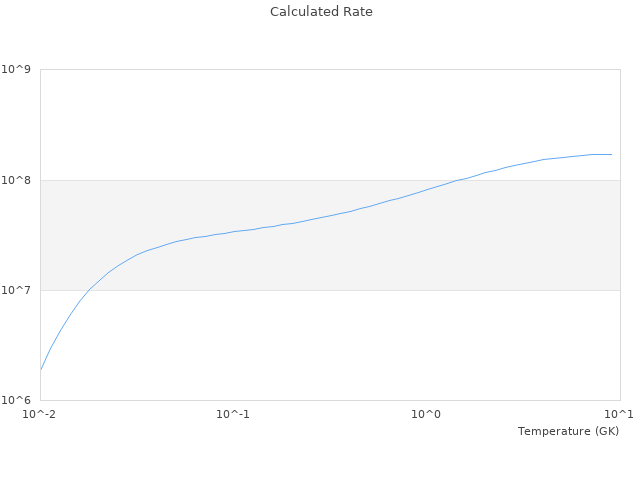

| View Graph | |
