Datapoints for p + al24 -> he4 + mg21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.124277e-228 |
| 0.2 | 4.321245e-173 |
| 0.3 | 4.796633e-117 |
| 0.4 | 2.056791e-88 |
| 0.5 | 6.704197e-71 |
| 0.6 | 5.091394e-59 |
| 0.7 | 2.131920e-50 |
| 0.8 | 7.767065e-44 |
| 0.9 | 1.155791e-38 |
| 1 | 1.790907e-34 |
| 1.5 | 1.566497e-21 |
| 2 | 9.222536e-15 |
| 2.5 | 1.486153e-10 |
| 3 | 1.145487e-07 |
| 3.5 | 1.487122e-05 |
| 4 | 6.188626e-04 |
| 4.5 | 1.188237e-02 |
| 5 | 1.314234e-01 |
| 6 | 5.199542e+00 |
| 7 | 7.588940e+01 |
| 8 | 5.781949e+02 |
| 9 | 2.793943e+03 |
| 10 | 9.629371e+03 |

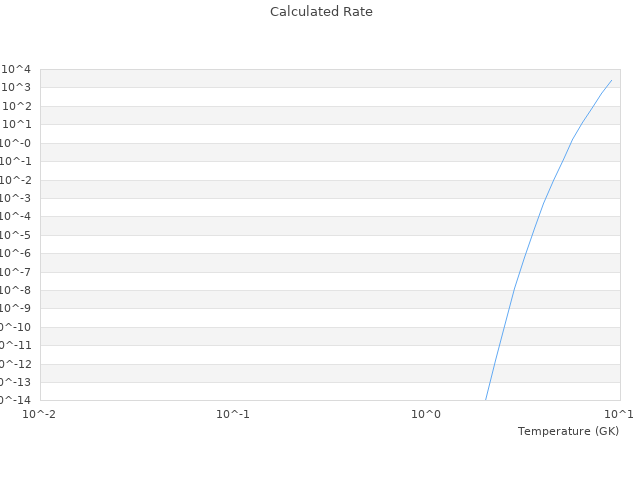

| View Graph | |
