Datapoints for he4 + mg22 -> si26
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.699174e-35 |
| 0.15 | 4.438559e-28 |
| 0.2 | 5.712788e-24 |
| 0.3 | 4.648039e-19 |
| 0.4 | 4.615029e-16 |
| 0.5 | 5.829263e-14 |
| 0.6 | 2.281380e-12 |
| 0.7 | 4.230254e-11 |
| 0.8 | 4.691207e-10 |
| 0.9 | 3.580708e-09 |
| 1 | 2.059936e-08 |
| 1.5 | 9.745111e-06 |
| 2 | 4.485557e-04 |
| 2.5 | 6.381831e-03 |
| 3 | 4.518683e-02 |
| 3.5 | 2.027853e-01 |
| 4 | 6.631047e-01 |
| 4.5 | 1.724725e+00 |
| 5 | 3.783762e+00 |
| 6 | 1.273928e+01 |
| 7 | 3.139731e+01 |
| 8 | 6.422727e+01 |
| 9 | 1.180484e+02 |
| 10 | 2.055585e+02 |

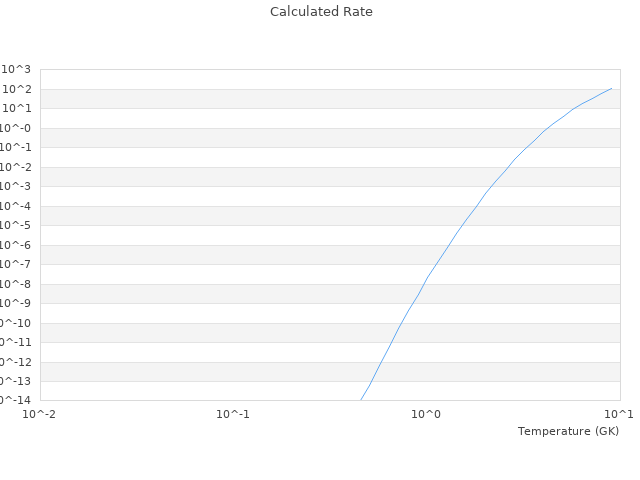

| View Graph | |
