Datapoints for p + mg30 -> he4 + na27
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.135896e-13 |
| 0.15 | 4.283917e-10 |
| 0.2 | 2.037085e-08 |
| 0.3 | 2.799287e-06 |
| 0.4 | 7.273787e-05 |
| 0.5 | 8.181404e-04 |
| 0.6 | 5.521946e-03 |
| 0.7 | 2.638335e-02 |
| 0.8 | 9.825008e-02 |
| 0.9 | 3.031910e-01 |
| 1 | 8.082005e-01 |
| 1.5 | 2.706644e+01 |
| 2 | 2.505325e+02 |
| 2.5 | 1.209372e+03 |
| 3 | 3.986676e+03 |
| 3.5 | 1.027848e+04 |
| 4 | 2.235794e+04 |
| 4.5 | 4.294223e+04 |
| 5 | 7.495314e+04 |
| 6 | 1.837461e+05 |
| 7 | 3.606333e+05 |
| 8 | 5.926641e+05 |
| 9 | 8.349672e+05 |
| 10 | 1.021402e+06 |

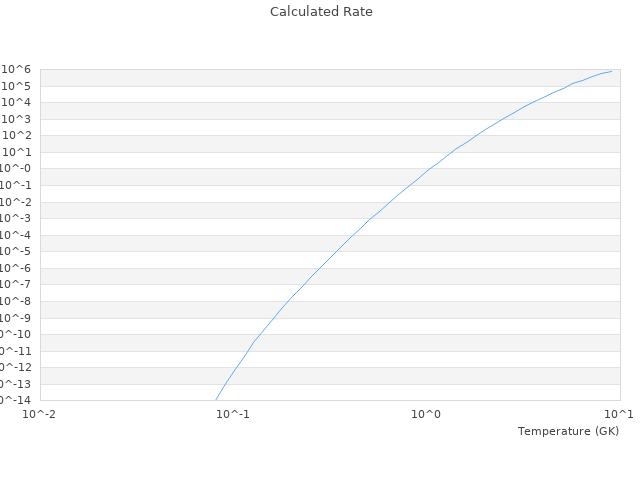

| View Graph | |
