Datapoints for p + mg46 -> al47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.197236e-11 |
| 0.15 | 4.023909e-08 |
| 0.2 | 1.606577e-06 |
| 0.3 | 1.532291e-04 |
| 0.4 | 2.836182e-03 |
| 0.5 | 2.325681e-02 |
| 0.6 | 1.164516e-01 |
| 0.7 | 4.185347e-01 |
| 0.8 | 1.186164e+00 |
| 0.9 | 2.814369e+00 |
| 1 | 5.821695e+00 |
| 1.5 | 6.169292e+01 |
| 2 | 2.122382e+02 |
| 2.5 | 4.335817e+02 |
| 3 | 6.742966e+02 |
| 3.5 | 9.000091e+02 |
| 4 | 1.098800e+03 |
| 4.5 | 1.271947e+03 |
| 5 | 1.425729e+03 |
| 6 | 1.701665e+03 |
| 7 | 1.965854e+03 |
| 8 | 2.233570e+03 |
| 9 | 2.500091e+03 |
| 10 | 2.745233e+03 |

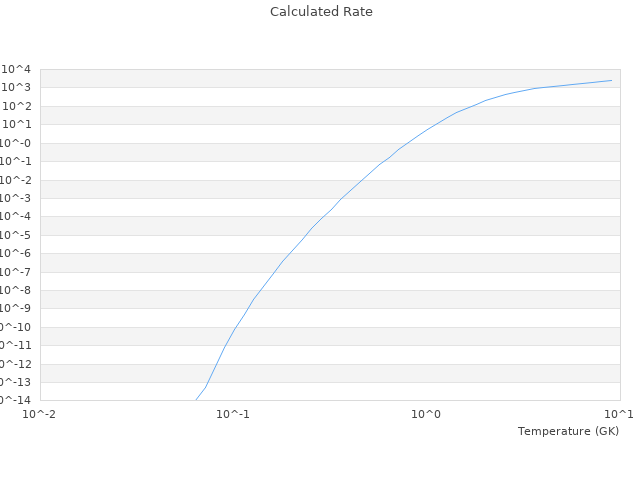

| View Graph | |
