Datapoints for he4 + al21 -> p + si24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.344950e-32 |
| 0.15 | 3.209579e-25 |
| 0.2 | 6.937743e-21 |
| 0.3 | 9.959485e-16 |
| 0.4 | 1.348470e-12 |
| 0.5 | 2.080208e-10 |
| 0.6 | 9.391468e-09 |
| 0.7 | 1.943053e-07 |
| 0.8 | 2.354019e-06 |
| 0.9 | 1.935087e-05 |
| 1 | 1.186823e-04 |
| 1.5 | 7.106139e-02 |
| 2 | 3.860271e+00 |
| 2.5 | 6.260561e+01 |
| 3 | 4.941443e+02 |
| 3.5 | 2.431973e+03 |
| 4 | 8.610246e+03 |
| 4.5 | 2.399457e+04 |
| 5 | 5.590665e+04 |
| 6 | 2.078232e+05 |
| 7 | 5.529786e+05 |
| 8 | 1.200583e+06 |
| 9 | 2.311555e+06 |
| 10 | 4.174373e+06 |

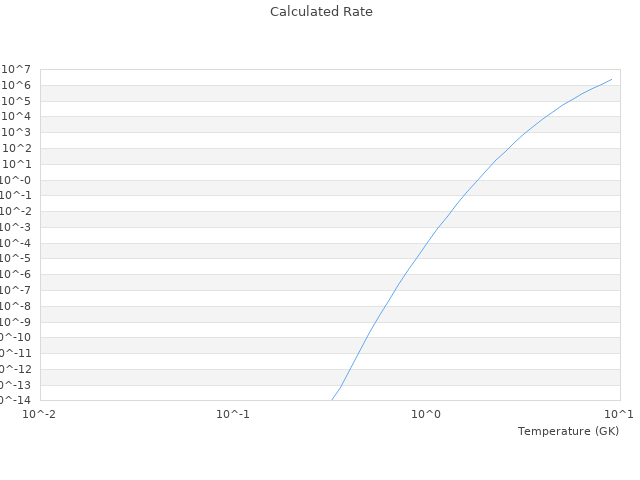

| View Graph | |
