Datapoints for n + al22 -> he4 + na19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.625867e+07 |
| 0.15 | 8.626928e+07 |
| 0.2 | 9.515656e+07 |
| 0.3 | 1.116975e+08 |
| 0.4 | 1.271380e+08 |
| 0.5 | 1.416435e+08 |
| 0.6 | 1.552999e+08 |
| 0.7 | 1.681757e+08 |
| 0.8 | 1.803307e+08 |
| 0.9 | 1.918176e+08 |
| 1 | 2.026838e+08 |
| 1.5 | 2.490622e+08 |
| 2 | 2.849157e+08 |
| 2.5 | 3.129586e+08 |
| 3 | 3.350853e+08 |
| 3.5 | 3.526687e+08 |
| 4 | 3.667311e+08 |
| 4.5 | 3.780485e+08 |
| 5 | 3.872192e+08 |
| 6 | 4.008929e+08 |
| 7 | 4.104482e+08 |
| 8 | 4.176237e+08 |
| 9 | 4.235770e+08 |
| 10 | 4.291014e+08 |

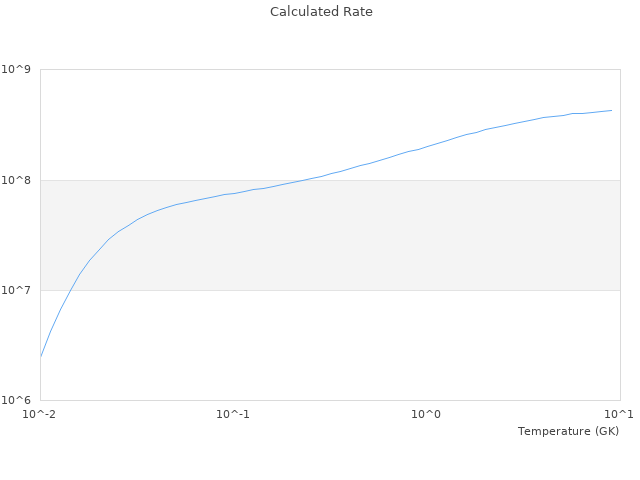

| View Graph | |
