Datapoints for p + al22 -> si23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.432657e-17 |
| 0.15 | 1.430890e-14 |
| 0.2 | 6.245045e-13 |
| 0.3 | 6.625087e-11 |
| 0.4 | 1.288920e-09 |
| 0.5 | 1.092067e-08 |
| 0.6 | 5.646024e-08 |
| 0.7 | 2.106553e-07 |
| 0.8 | 6.243207e-07 |
| 0.9 | 1.560739e-06 |
| 1 | 3.425570e-06 |
| 1.5 | 5.281914e-05 |
| 2 | 2.846153e-04 |
| 2.5 | 9.334013e-04 |
| 3 | 2.328232e-03 |
| 3.5 | 4.912682e-03 |
| 4 | 9.276316e-03 |
| 4.5 | 1.618143e-02 |
| 5 | 2.657181e-02 |
| 6 | 6.230915e-02 |
| 7 | 1.255871e-01 |
| 8 | 2.215989e-01 |
| 9 | 3.442816e-01 |
| 10 | 4.710968e-01 |

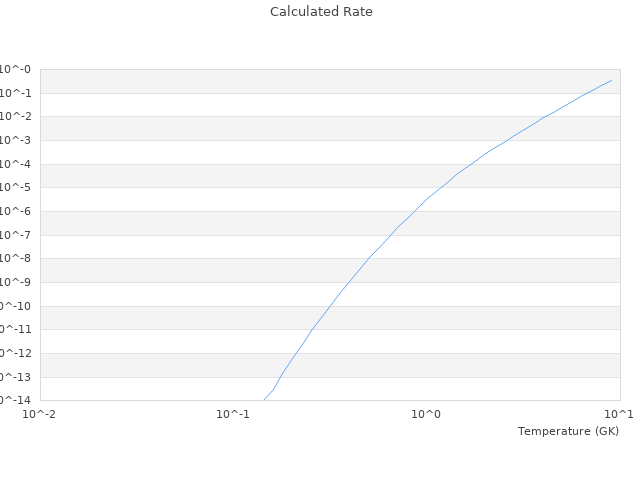

| View Graph | |
