Datapoints for p + mg23 -> n + al23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-320 |
| 0.3 | 9.793878e-211 |
| 0.4 | 5.568882e-156 |
| 0.5 | 4.085050e-123 |
| 0.6 | 3.385315e-101 |
| 0.7 | 1.553100e-85 |
| 0.8 | 8.738530e-74 |
| 0.9 | 1.212055e-64 |
| 1 | 2.508922e-57 |
| 1.5 | 2.311275e-35 |
| 2 | 2.283951e-24 |
| 2.5 | 9.134512e-18 |
| 3 | 2.312001e-13 |
| 3.5 | 3.234192e-10 |
| 4 | 7.396402e-08 |
| 4.5 | 5.054200e-06 |
| 5 | 1.482318e-04 |
| 6 | 2.348873e-02 |
| 7 | 8.740454e-01 |
| 8 | 1.317516e+01 |
| 9 | 1.089663e+02 |
| 10 | 5.933687e+02 |

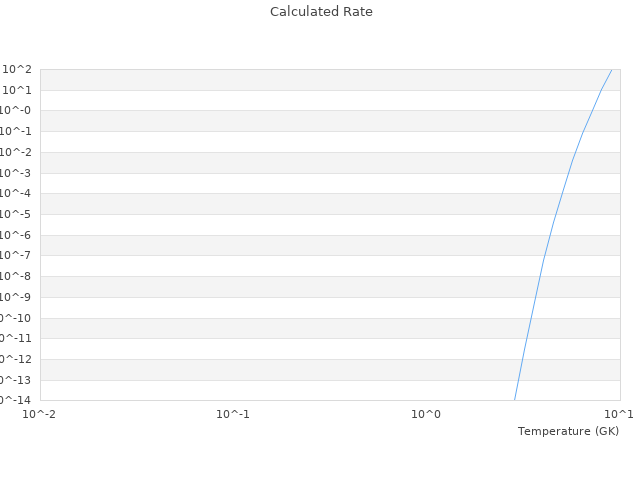

| View Graph | |
