Datapoints for n + al24 -> he4 + na21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.333147e+07 |
| 0.15 | 5.015758e+07 |
| 0.2 | 5.617642e+07 |
| 0.3 | 6.724310e+07 |
| 0.4 | 7.742127e+07 |
| 0.5 | 8.684609e+07 |
| 0.6 | 9.558985e+07 |
| 0.7 | 1.037110e+08 |
| 0.8 | 1.112612e+08 |
| 0.9 | 1.182868e+08 |
| 1 | 1.248297e+08 |
| 1.5 | 1.515157e+08 |
| 2 | 1.705779e+08 |
| 2.5 | 1.843611e+08 |
| 3 | 1.944198e+08 |
| 3.5 | 2.018172e+08 |
| 4 | 2.072990e+08 |
| 4.5 | 2.113989e+08 |
| 5 | 2.145056e+08 |
| 6 | 2.188173e+08 |
| 7 | 2.217814e+08 |
| 8 | 2.243022e+08 |
| 9 | 2.269318e+08 |
| 10 | 2.300243e+08 |

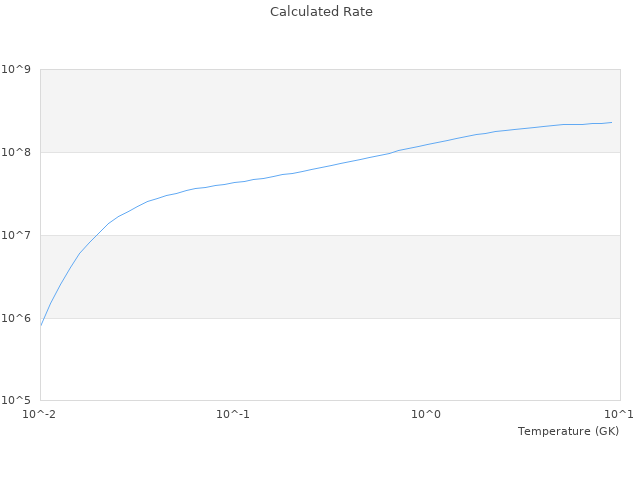

| View Graph | |
