Datapoints for p + al31 -> he4 + mg28
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.163663e-10 |
| 0.15 | 5.123506e-07 |
| 0.2 | 2.205713e-05 |
| 0.3 | 2.259810e-03 |
| 0.4 | 4.324039e-02 |
| 0.5 | 3.640504e-01 |
| 0.6 | 1.876768e+00 |
| 0.7 | 6.982005e+00 |
| 0.8 | 2.059771e+01 |
| 0.9 | 5.113256e+01 |
| 1 | 1.111490e+02 |
| 1.5 | 1.574504e+03 |
| 2 | 7.461855e+03 |
| 2.5 | 2.102156e+04 |
| 3 | 4.457563e+04 |
| 3.5 | 7.979120e+04 |
| 4 | 1.282422e+05 |
| 4.5 | 1.917493e+05 |
| 5 | 2.724795e+05 |
| 6 | 4.955704e+05 |
| 7 | 8.172957e+05 |
| 8 | 1.250562e+06 |
| 9 | 1.789671e+06 |
| 10 | 2.398587e+06 |

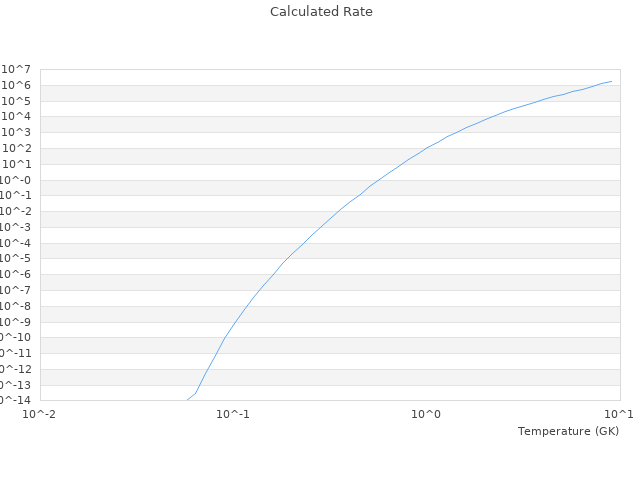

| View Graph | |
