Datapoints for p + al47 -> he4 + mg44
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.338969e-14 |
| 0.15 | 6.692824e-11 |
| 0.2 | 2.924233e-09 |
| 0.3 | 2.982128e-07 |
| 0.4 | 5.724653e-06 |
| 0.5 | 4.869790e-05 |
| 0.6 | 2.543240e-04 |
| 0.7 | 9.586641e-04 |
| 0.8 | 2.862946e-03 |
| 0.9 | 7.184677e-03 |
| 1 | 1.576484e-02 |
| 1.5 | 2.296100e-01 |
| 2 | 1.095519e+00 |
| 2.5 | 3.073221e+00 |
| 3 | 6.448910e+00 |
| 3.5 | 1.137555e+01 |
| 4 | 1.795253e+01 |
| 4.5 | 2.626343e+01 |
| 5 | 3.637358e+01 |
| 6 | 6.199622e+01 |
| 7 | 9.380190e+01 |
| 8 | 1.284363e+02 |
| 9 | 1.599291e+02 |
| 10 | 1.808761e+02 |

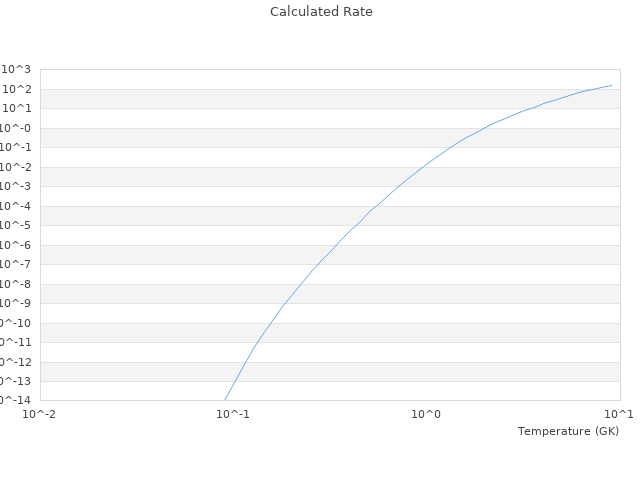

| View Graph | |
