Datapoints for he4 + si23 -> p + p26
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.156250e-35 |
| 0.15 | 1.285636e-27 |
| 0.2 | 4.926416e-23 |
| 0.3 | 1.498404e-17 |
| 0.4 | 3.367849e-14 |
| 0.5 | 7.595952e-12 |
| 0.6 | 4.632454e-10 |
| 0.7 | 1.226311e-08 |
| 0.8 | 1.827272e-07 |
| 0.9 | 1.792844e-06 |
| 1 | 1.281970e-05 |
| 1.5 | 1.321003e-02 |
| 2 | 1.003009e+00 |
| 2.5 | 2.047643e+01 |
| 3 | 1.915601e+02 |
| 3.5 | 1.076201e+03 |
| 4 | 4.242677e+03 |
| 4.5 | 1.294134e+04 |
| 5 | 3.260279e+04 |
| 6 | 1.382221e+05 |
| 7 | 4.105746e+05 |
| 8 | 9.816608e+05 |
| 9 | 2.061645e+06 |
| 10 | 4.031297e+06 |

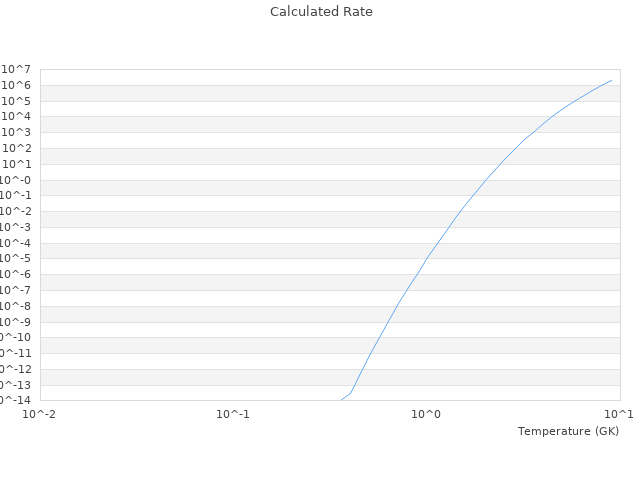

| View Graph | |
