Datapoints for n + p27 -> he4 + al24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.342526e+06 |
| 0.15 | 2.769090e+06 |
| 0.2 | 3.138527e+06 |
| 0.3 | 3.824658e+06 |
| 0.4 | 4.478732e+06 |
| 0.5 | 5.111645e+06 |
| 0.6 | 5.726466e+06 |
| 0.7 | 6.324529e+06 |
| 0.8 | 6.906629e+06 |
| 0.9 | 7.473372e+06 |
| 1 | 8.025282e+06 |
| 1.5 | 1.057919e+07 |
| 2 | 1.283252e+07 |
| 2.5 | 1.483946e+07 |
| 3 | 1.664871e+07 |
| 3.5 | 1.830296e+07 |
| 4 | 1.983916e+07 |
| 4.5 | 2.128936e+07 |
| 5 | 2.268145e+07 |
| 6 | 2.538691e+07 |
| 7 | 2.812400e+07 |
| 8 | 3.103692e+07 |
| 9 | 3.426006e+07 |
| 10 | 3.792981e+07 |

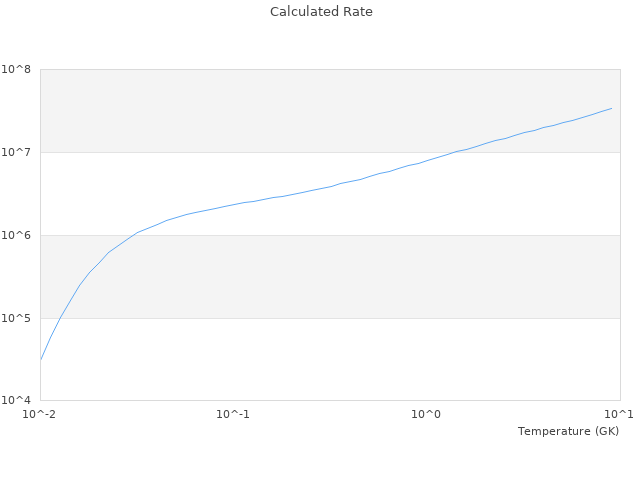

| View Graph | |
