Datapoints for ti37 -> he4 + ca33
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 7.623562e-254 |
| 0.3 | 3.772744e-168 |
| 0.4 | 2.534916e-125 |
| 0.5 | 1.153369e-99 |
| 0.6 | 1.495757e-82 |
| 0.7 | 2.738028e-70 |
| 0.8 | 4.893284e-61 |
| 0.9 | 8.857226e-54 |
| 1 | 6.542614e-48 |
| 1.5 | 1.215229e-29 |
| 2 | 9.276620e-20 |
| 2.5 | 2.161567e-13 |
| 3 | 6.477690e-09 |
| 3.5 | 1.307616e-05 |
| 4 | 4.280695e-03 |
| 4.5 | 3.855957e-01 |
| 5 | 1.354068e+01 |
| 6 | 2.478382e+03 |
| 7 | 9.848158e+04 |
| 8 | 1.925173e+06 |
| 9 | 3.223726e+07 |
| 10 | 6.889215e+08 |

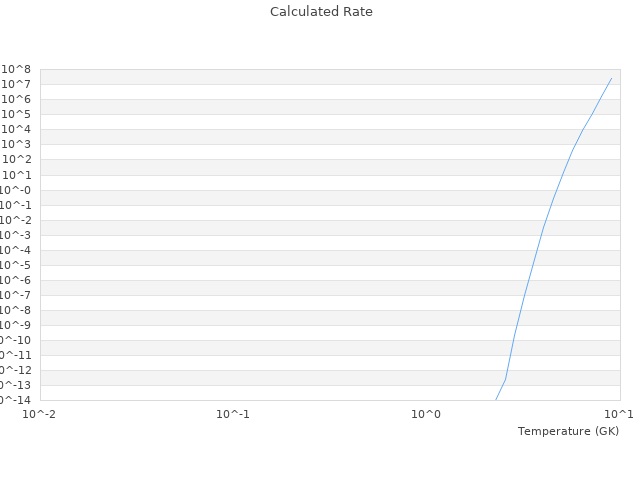

| View Graph | |
