Datapoints for he4 + ca38 -> ti42
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.624666e-75 |
| 0.15 | 3.537531e-52 |
| 0.2 | 2.415201e-40 |
| 0.3 | 1.415931e-28 |
| 0.4 | 6.031464e-23 |
| 0.5 | 1.046541e-19 |
| 0.6 | 1.374331e-17 |
| 0.7 | 4.615309e-16 |
| 0.8 | 7.064277e-15 |
| 0.9 | 6.653879e-14 |
| 1 | 4.556485e-13 |
| 1.5 | 6.177745e-10 |
| 2 | 1.161928e-07 |
| 2.5 | 6.754147e-06 |
| 3 | 1.584264e-04 |
| 3.5 | 1.780709e-03 |
| 4 | 1.104642e-02 |
| 4.5 | 4.275418e-02 |
| 5 | 1.149457e-01 |
| 6 | 4.008553e-01 |
| 7 | 8.711968e-01 |
| 8 | 1.903239e+00 |
| 9 | 6.063553e+00 |
| 10 | 3.776671e+01 |

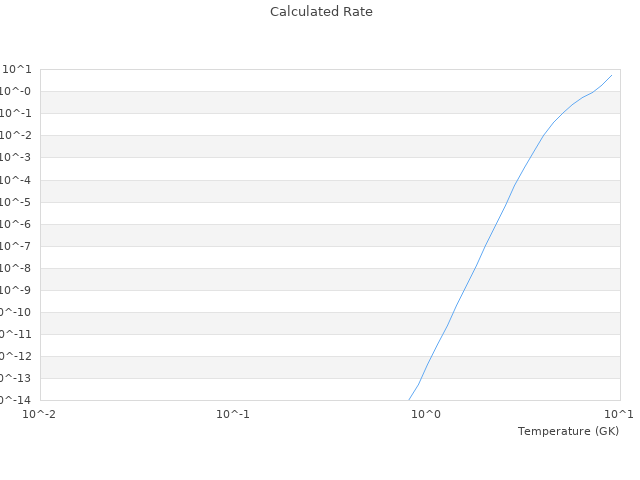

| View Graph | |
