Datapoints for ti47 -> he4 + ca43
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 5.550377e-255 |
| 0.3 | 2.074428e-167 |
| 0.4 | 7.878057e-124 |
| 0.5 | 8.511101e-98 |
| 0.6 | 1.816593e-80 |
| 0.7 | 4.576085e-68 |
| 0.8 | 1.021547e-58 |
| 0.9 | 2.182054e-51 |
| 1 | 1.835207e-45 |
| 1.5 | 5.055324e-27 |
| 2 | 4.708163e-17 |
| 2.5 | 1.203870e-10 |
| 3 | 3.675361e-06 |
| 3.5 | 7.162696e-03 |
| 4 | 2.180122e+00 |
| 4.5 | 1.781891e+02 |
| 5 | 5.602461e+03 |
| 6 | 8.183671e+05 |
| 7 | 2.701875e+07 |
| 8 | 4.764788e+08 |
| 9 | 8.060985e+09 |
| 10 | 1.995027e+11 |

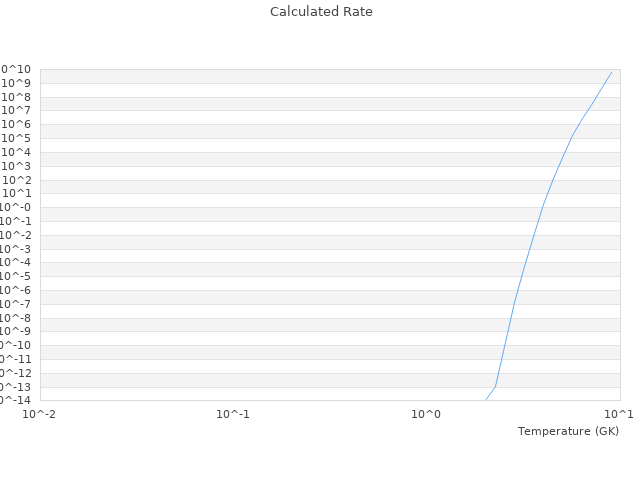

| View Graph | |
