Datapoints for he4 + ca43 -> ti47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.857858e-75 |
| 0.15 | 1.258438e-51 |
| 0.2 | 2.032316e-39 |
| 0.3 | 2.861740e-27 |
| 0.4 | 1.857132e-21 |
| 0.5 | 4.065411e-18 |
| 0.6 | 6.132600e-16 |
| 0.7 | 2.245673e-14 |
| 0.8 | 3.633181e-13 |
| 0.9 | 3.546899e-12 |
| 1 | 2.485300e-11 |
| 1.5 | 3.462150e-08 |
| 2 | 6.383521e-06 |
| 2.5 | 3.612729e-04 |
| 3 | 8.267837e-03 |
| 3.5 | 9.105953e-02 |
| 4 | 5.561279e-01 |
| 4.5 | 2.129035e+00 |
| 5 | 5.687398e+00 |
| 6 | 1.983879e+01 |
| 7 | 4.386322e+01 |
| 8 | 9.913052e+01 |
| 9 | 3.322703e+02 |
| 10 | 2.214882e+03 |

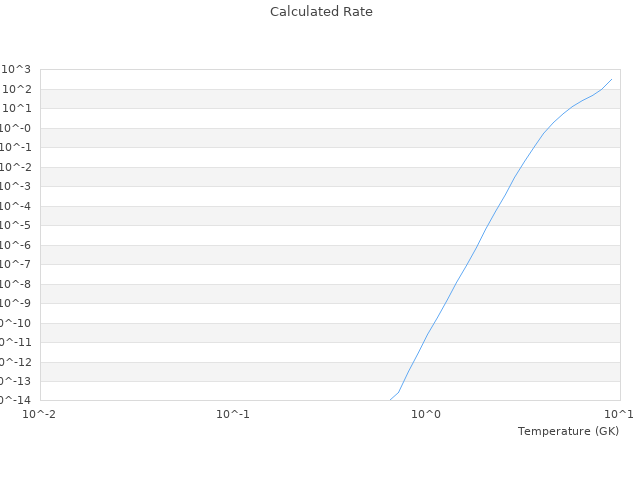

| View Graph | |
