Datapoints for ti51 -> he4 + ca47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.471846e-279 |
| 0.3 | 1.808998e-184 |
| 0.4 | 4.007732e-137 |
| 0.5 | 8.240114e-109 |
| 0.6 | 6.120411e-90 |
| 0.7 | 2.039943e-76 |
| 0.8 | 3.293160e-66 |
| 0.9 | 3.396177e-58 |
| 1 | 1.037423e-51 |
| 1.5 | 1.756153e-31 |
| 2 | 1.581446e-20 |
| 2.5 | 1.707096e-13 |
| 3 | 1.381400e-08 |
| 3.5 | 5.317978e-05 |
| 4 | 2.623070e-02 |
| 4.5 | 3.027160e+00 |
| 5 | 1.219756e+02 |
| 6 | 2.442469e+04 |
| 7 | 9.823573e+05 |
| 8 | 2.070363e+07 |
| 9 | 4.387573e+08 |
| 10 | 1.493964e+10 |

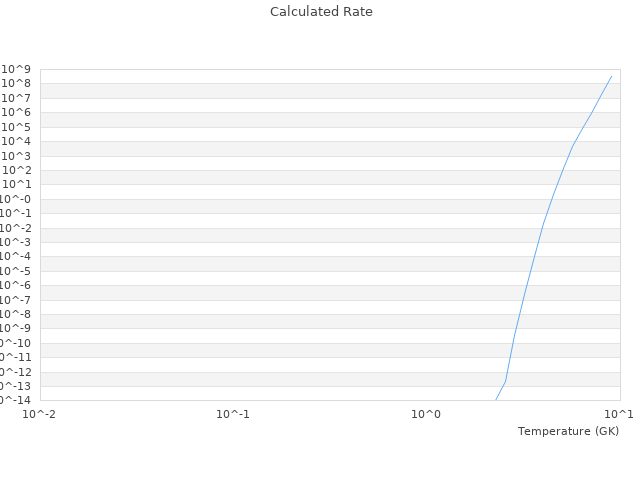

| View Graph | |
