Datapoints for he4 + ca65 -> n + ti68
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.849827e-80 |
| 0.15 | 9.639034e-54 |
| 0.2 | 5.215669e-40 |
| 0.3 | 1.390999e-26 |
| 0.4 | 2.653265e-20 |
| 0.5 | 9.418491e-17 |
| 0.6 | 1.856497e-14 |
| 0.7 | 8.197600e-13 |
| 0.8 | 1.556113e-11 |
| 0.9 | 1.771350e-10 |
| 1 | 1.449545e-09 |
| 1.5 | 4.564148e-06 |
| 2 | 1.814923e-03 |
| 2.5 | 1.912607e-01 |
| 3 | 6.884228e+00 |
| 3.5 | 1.020813e+02 |
| 4 | 7.373541e+02 |
| 4.5 | 3.018705e+03 |
| 5 | 8.018826e+03 |
| 6 | 2.458742e+04 |
| 7 | 4.704785e+04 |
| 8 | 1.039025e+05 |
| 9 | 4.275622e+05 |
| 10 | 4.779833e+06 |

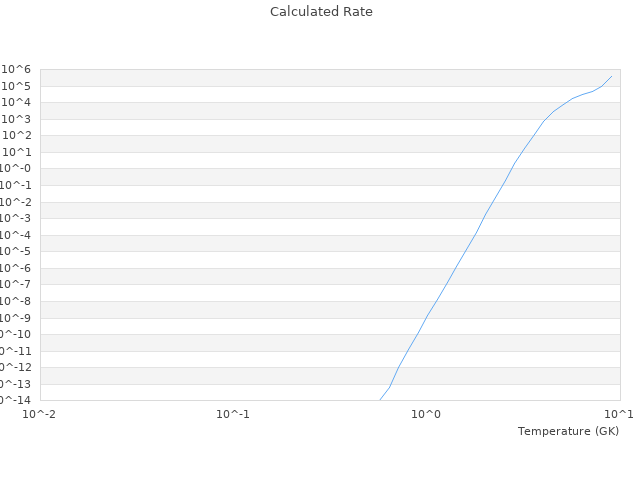

| View Graph | |
