Datapoints for n + ti70 -> he4 + ca67
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 4.261439e-298 |
| 0.5 | 1.129667e-238 |
| 0.6 | 3.900376e-199 |
| 0.7 | 6.850514e-171 |
| 0.8 | 1.154343e-149 |
| 0.9 | 4.297514e-133 |
| 1 | 9.069455e-120 |
| 1.5 | 4.913640e-79 |
| 2 | 8.171462e-58 |
| 2.5 | 1.287237e-44 |
| 3 | 1.304728e-35 |
| 3.5 | 4.041964e-29 |
| 4 | 2.842160e-24 |
| 4.5 | 1.465867e-20 |
| 5 | 1.172413e-17 |
| 6 | 1.865218e-13 |
| 7 | 1.603595e-10 |
| 8 | 3.476788e-08 |
| 9 | 5.141813e-06 |
| 10 | 1.031918e-03 |

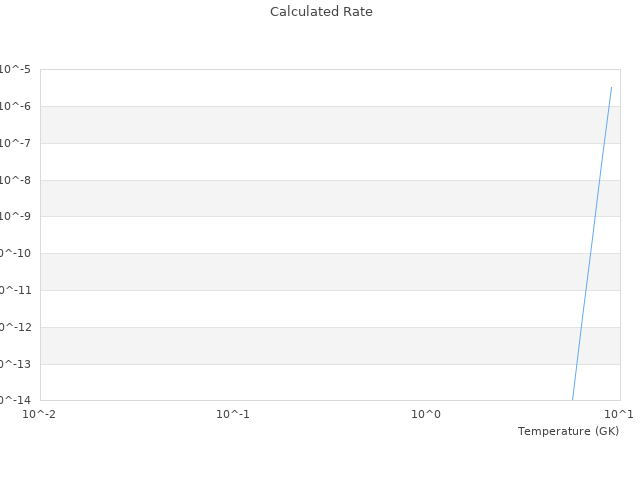

| View Graph | |
