Datapoints for n + ti73 -> he4 + ca70
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 1.698072e-282 |
| 0.5 | 2.020515e-226 |
| 0.6 | 4.018977e-189 |
| 0.7 | 1.758748e-162 |
| 0.8 | 1.850505e-142 |
| 0.9 | 7.953403e-127 |
| 1 | 2.983147e-114 |
| 1.5 | 9.166287e-76 |
| 2 | 1.169731e-55 |
| 2.5 | 3.991760e-43 |
| 3 | 1.464178e-34 |
| 3.5 | 2.191478e-28 |
| 4 | 8.895830e-24 |
| 4.5 | 2.978656e-20 |
| 5 | 1.678590e-17 |
| 6 | 1.564244e-13 |
| 7 | 9.134046e-11 |
| 8 | 1.490466e-08 |
| 9 | 1.797451e-06 |
| 10 | 3.150116e-04 |

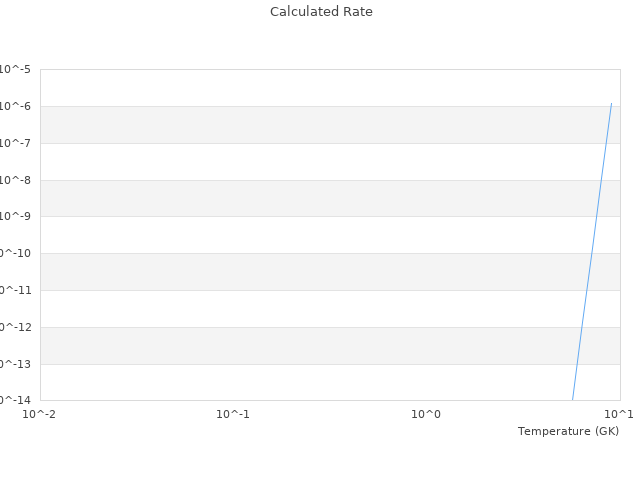

| View Graph | |
