Datapoints for ti77 -> he4 + ca73
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 1.093738e-296 |
| 0.5 | 1.487066e-236 |
| 0.6 | 1.533891e-196 |
| 0.7 | 5.955628e-168 |
| 0.8 | 1.845539e-146 |
| 0.9 | 1.120078e-129 |
| 1 | 3.545433e-116 |
| 1.5 | 7.502102e-75 |
| 2 | 2.894964e-53 |
| 2.5 | 8.308563e-40 |
| 3 | 1.325277e-30 |
| 3.5 | 5.842647e-24 |
| 4 | 5.432605e-19 |
| 4.5 | 3.506455e-15 |
| 5 | 3.366383e-12 |
| 6 | 7.082155e-08 |
| 7 | 7.533549e-05 |
| 8 | 1.972002e-02 |
| 9 | 3.542393e+00 |
| 10 | 8.890178e+02 |

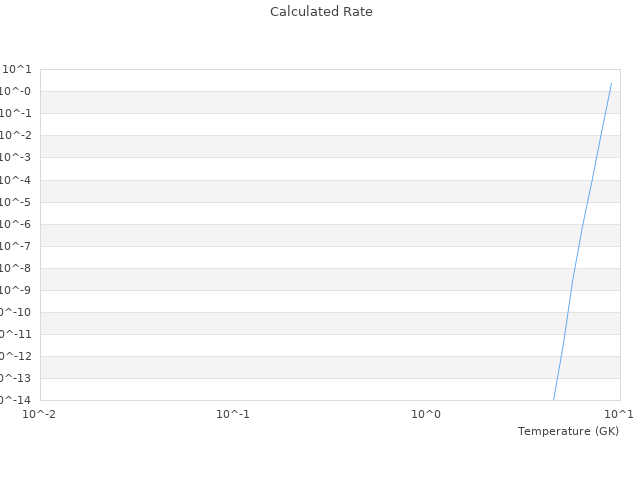

| View Graph | |
