Datapoints for n + ti76 -> he4 + ca73
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 0.000000e+00 |
| 0.5 | 2.647032e-269 |
| 0.6 | 1.167577e-224 |
| 0.7 | 8.826853e-193 |
| 0.8 | 7.760620e-169 |
| 0.9 | 3.712796e-150 |
| 1 | 3.788898e-135 |
| 1.5 | 2.278009e-89 |
| 2 | 1.272832e-65 |
| 2.5 | 6.648069e-51 |
| 3 | 6.975336e-41 |
| 3.5 | 1.143303e-33 |
| 4 | 2.784965e-28 |
| 4.5 | 3.743985e-24 |
| 5 | 6.392159e-21 |
| 6 | 3.116320e-16 |
| 7 | 5.905494e-13 |
| 8 | 2.337797e-10 |
| 9 | 5.684473e-08 |
| 10 | 1.781850e-05 |

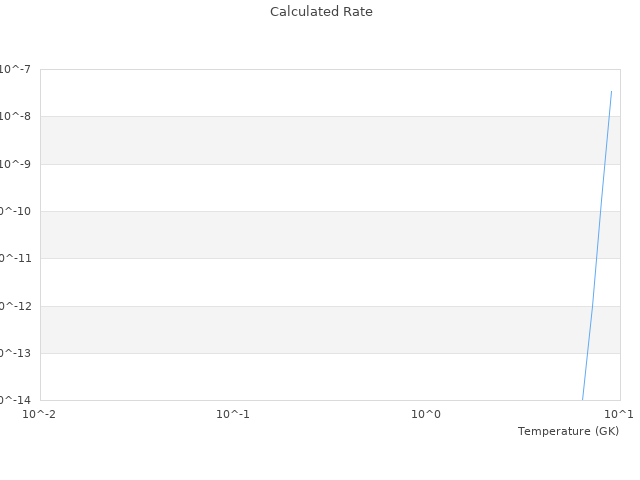

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
