Datapoints for he4 + sc47 -> p + ti50
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.418694e-78 |
| 0.15 | 4.359743e-54 |
| 0.2 | 1.756294e-41 |
| 0.3 | 4.675147e-29 |
| 0.4 | 3.773170e-23 |
| 0.5 | 9.592769e-20 |
| 0.6 | 1.693879e-17 |
| 0.7 | 7.424296e-16 |
| 0.8 | 1.467800e-14 |
| 0.9 | 1.778361e-13 |
| 1 | 1.562082e-12 |
| 1.5 | 6.860969e-09 |
| 2 | 3.477719e-06 |
| 2.5 | 4.418367e-04 |
| 3 | 1.873641e-02 |
| 3.5 | 3.253503e-01 |
| 4 | 2.755100e+00 |
| 4.5 | 1.326134e+01 |
| 5 | 4.149296e+01 |
| 6 | 1.756136e+02 |
| 7 | 4.507626e+02 |
| 8 | 1.264043e+03 |
| 9 | 6.105672e+03 |
| 10 | 7.257097e+04 |

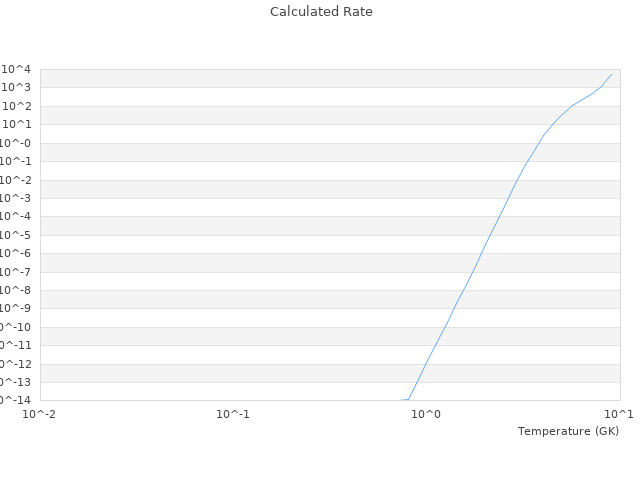

| View Graph | |
