Datapoints for p + ti51 -> he4 + sc48
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.220459e-113 |
| 0.15 | 9.436134e-79 |
| 0.2 | 2.184816e-60 |
| 0.3 | 1.113011e-41 |
| 0.4 | 2.096768e-32 |
| 0.5 | 6.519256e-27 |
| 0.6 | 2.942543e-23 |
| 0.7 | 1.300722e-20 |
| 0.8 | 1.429368e-18 |
| 0.9 | 6.434240e-17 |
| 1 | 1.581209e-15 |
| 1.5 | 1.256991e-10 |
| 2 | 2.322055e-07 |
| 2.5 | 6.158835e-05 |
| 3 | 4.326301e-03 |
| 3.5 | 1.116157e-01 |
| 4 | 1.324383e+00 |
| 4.5 | 8.600905e+00 |
| 5 | 3.523362e+01 |
| 6 | 2.345557e+02 |
| 7 | 8.339237e+02 |
| 8 | 2.790438e+03 |
| 9 | 1.356442e+04 |
| 10 | 1.344172e+05 |

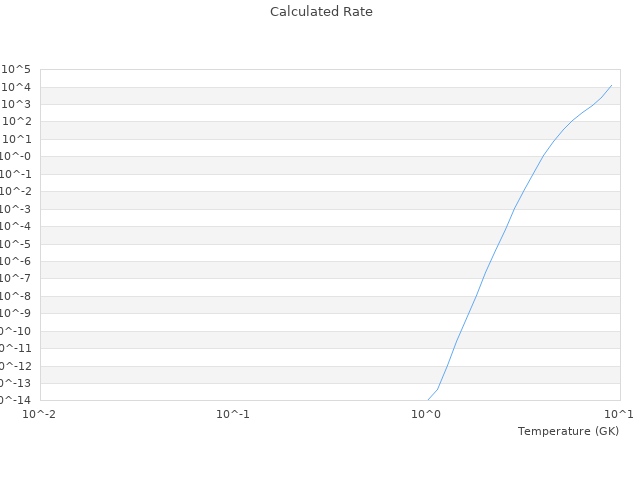

| View Graph | |
