Datapoints for n + ti68 -> p + sc68
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | INFe-316 |
| 0.5 | 1.657610e-252 |
| 0.6 | 1.097080e-209 |
| 0.7 | 5.183020e-179 |
| 0.8 | 6.018423e-156 |
| 0.9 | 5.753920e-138 |
| 1 | 1.492069e-123 |
| 1.5 | 4.030949e-80 |
| 2 | 2.873348e-58 |
| 2.5 | 4.326552e-45 |
| 3 | 2.922205e-36 |
| 3.5 | 6.427706e-30 |
| 4 | 3.934294e-25 |
| 4.5 | 2.204924e-21 |
| 5 | 2.307915e-18 |
| 6 | 8.618685e-14 |
| 7 | 1.696569e-10 |
| 8 | 4.981235e-08 |
| 9 | 3.842205e-06 |
| 10 | 1.084554e-04 |

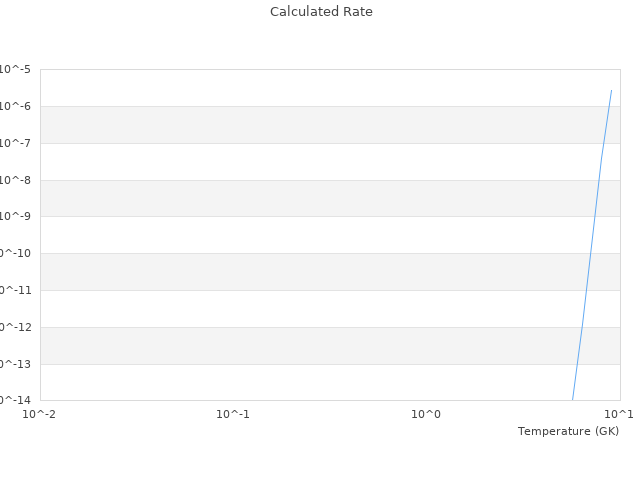

| View Graph | |
