Datapoints for ti77 -> p + sc76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 0.000000e+00 |
| 0.5 | 1.390511e-285 |
| 0.6 | 1.555151e-236 |
| 0.7 | 2.137174e-201 |
| 0.8 | 5.679957e-175 |
| 0.9 | 2.276682e-154 |
| 1 | 7.531203e-138 |
| 1.5 | 4.910133e-88 |
| 2 | 6.331843e-63 |
| 2.5 | 9.455340e-48 |
| 3 | 1.462133e-37 |
| 3.5 | 3.157107e-30 |
| 4 | 1.110014e-24 |
| 4.5 | 2.487311e-20 |
| 5 | 8.044676e-17 |
| 6 | 1.692218e-11 |
| 7 | 1.174714e-07 |
| 8 | 8.937467e-05 |
| 9 | 1.436153e-02 |
| 10 | 7.170404e-01 |

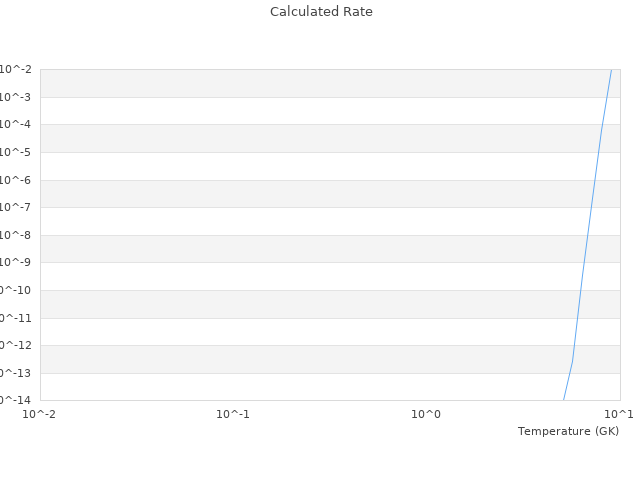

| View Graph | |
