Datapoints for v37 -> p + ti36
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.562167e-12 |
| 0.15 | 2.059170e-04 |
| 0.2 | 2.737041e+00 |
| 0.3 | 3.196140e+04 |
| 0.4 | 2.844024e+06 |
| 0.5 | 3.713199e+07 |
| 0.6 | 1.923166e+08 |
| 0.7 | 6.018677e+08 |
| 0.8 | 1.397342e+09 |
| 0.9 | 2.687179e+09 |
| 1 | 4.561466e+09 |
| 1.5 | 2.600566e+10 |
| 2 | 8.086174e+10 |
| 2.5 | 1.989283e+11 |
| 3 | 4.267355e+11 |
| 3.5 | 8.279038e+11 |
| 4 | 1.480113e+12 |
| 4.5 | 2.468572e+12 |
| 5 | 3.877312e+12 |
| 6 | 8.235869e+12 |
| 7 | 1.493995e+13 |
| 8 | 2.411858e+13 |
| 9 | 3.583448e+13 |
| 10 | 5.037549e+13 |

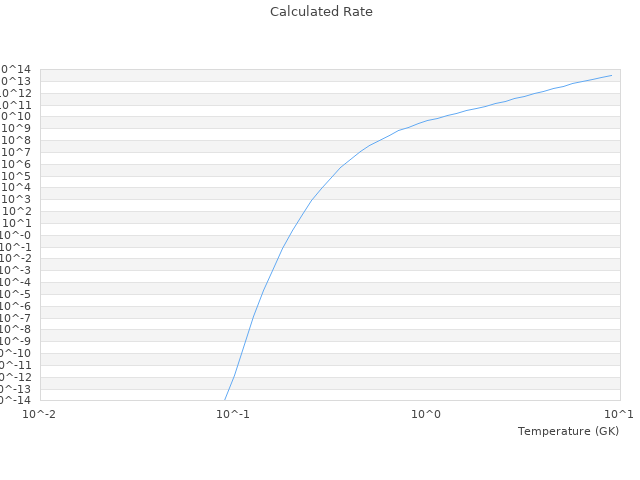

| View Graph | |
