Datapoints for he4 + ti37 -> cr41
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.468567e-93 |
| 0.15 | 2.825874e-66 |
| 0.2 | 8.672264e-52 |
| 0.3 | 4.674784e-37 |
| 0.4 | 7.797527e-30 |
| 0.5 | 1.295037e-25 |
| 0.6 | 7.752260e-23 |
| 0.7 | 7.691613e-21 |
| 0.8 | 2.648360e-19 |
| 0.9 | 4.683089e-18 |
| 1 | 5.312408e-17 |
| 1.5 | 3.415517e-13 |
| 2 | 1.538996e-10 |
| 2.5 | 1.660799e-08 |
| 3 | 6.358198e-07 |
| 3.5 | 1.076110e-05 |
| 4 | 9.481779e-05 |
| 4.5 | 4.976462e-04 |
| 5 | 1.745130e-03 |
| 6 | 9.397606e-03 |
| 7 | 2.836532e-02 |
| 8 | 7.904101e-02 |
| 9 | 2.998945e-01 |
| 10 | 2.105311e+00 |

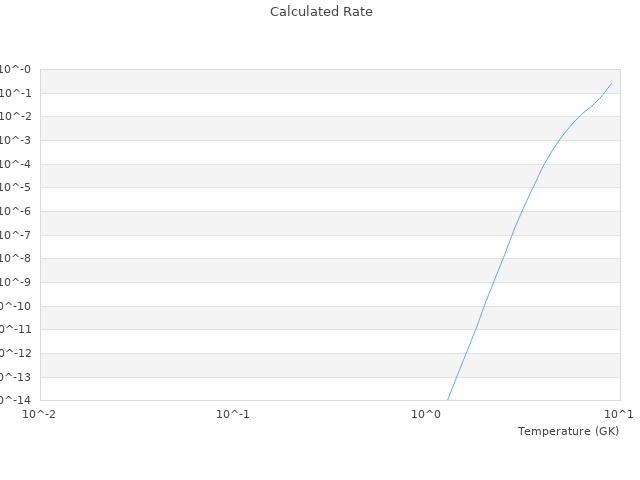

| View Graph | |
