Datapoints for v40 -> p + ti39
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.714757e+00 |
| 0.15 | 1.427802e+04 |
| 0.2 | 8.013624e+05 |
| 0.3 | 3.220934e+07 |
| 0.4 | 1.922389e+08 |
| 0.5 | 5.875165e+08 |
| 0.6 | 1.318281e+09 |
| 0.7 | 2.495948e+09 |
| 0.8 | 4.252308e+09 |
| 0.9 | 6.742663e+09 |
| 1 | 1.014685e+10 |
| 1.5 | 4.889046e+10 |
| 2 | 1.511210e+11 |
| 2.5 | 3.632050e+11 |
| 3 | 7.380930e+11 |
| 3.5 | 1.329015e+12 |
| 4 | 2.184036e+12 |
| 4.5 | 3.342382e+12 |
| 5 | 4.832699e+12 |
| 6 | 8.871862e+12 |
| 7 | 1.434387e+13 |
| 8 | 2.120605e+13 |
| 9 | 2.939770e+13 |
| 10 | 3.889307e+13 |

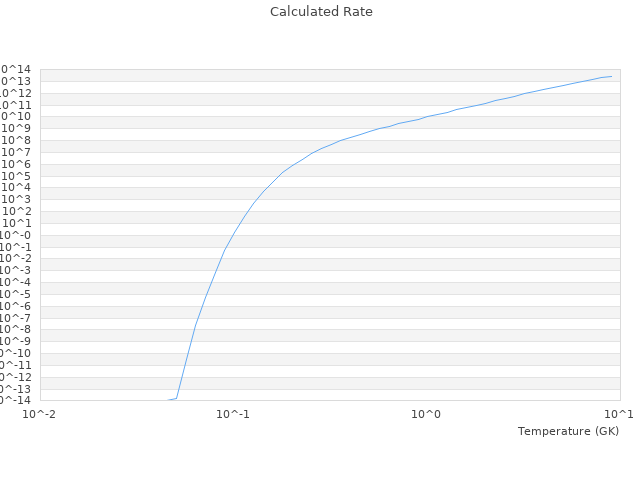

| View Graph | |
