Datapoints for ti44 -> n + ti43
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.230932e-259 |
| 0.4 | 5.346897e-191 |
| 0.5 | 8.754839e-150 |
| 0.6 | 2.749398e-122 |
| 0.7 | 1.244260e-102 |
| 0.8 | 7.046314e-88 |
| 0.9 | 2.144943e-76 |
| 1 | 3.352224e-67 |
| 1.5 | 1.465187e-39 |
| 2 | 1.106974e-25 |
| 2.5 | 2.553390e-17 |
| 3 | 1.016457e-11 |
| 3.5 | 1.059003e-07 |
| 4 | 1.126143e-04 |
| 4.5 | 2.605454e-02 |
| 5 | 2.066296e+00 |
| 6 | 1.513883e+03 |
| 7 | 1.737538e+05 |
| 8 | 6.197018e+06 |
| 9 | 1.005694e+08 |
| 10 | 9.341058e+08 |

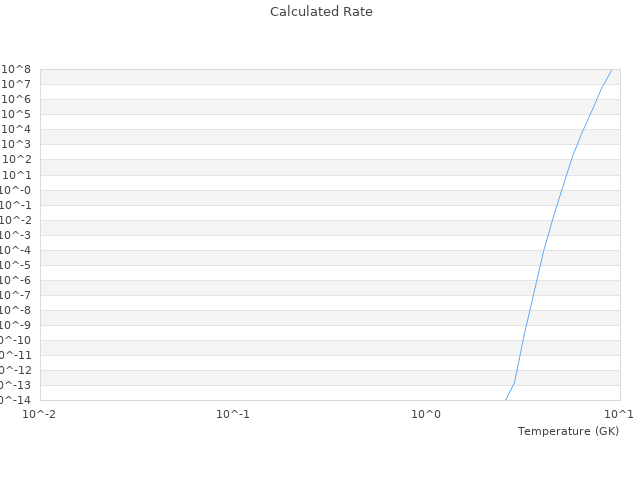

| View Graph | |
