Datapoints for v47 -> p + ti46
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.513134e-268 |
| 0.15 | 6.927981e-177 |
| 0.2 | 5.946005e-131 |
| 0.3 | 2.108404e-84 |
| 0.4 | 1.101709e-60 |
| 0.5 | 3.272504e-46 |
| 0.6 | 2.022069e-36 |
| 0.7 | 2.443793e-29 |
| 0.8 | 5.722999e-24 |
| 0.9 | 9.398084e-20 |
| 1 | 2.358248e-16 |
| 1.5 | 5.465878e-06 |
| 2 | 1.077474e+00 |
| 2.5 | 1.829542e+03 |
| 3 | 2.846244e+05 |
| 3.5 | 1.131183e+07 |
| 4 | 1.918983e+08 |
| 4.5 | 1.843909e+09 |
| 5 | 1.185836e+10 |
| 6 | 2.145165e+11 |
| 7 | 1.813450e+12 |
| 8 | 8.862479e+12 |
| 9 | 2.777913e+13 |
| 10 | 5.886027e+13 |

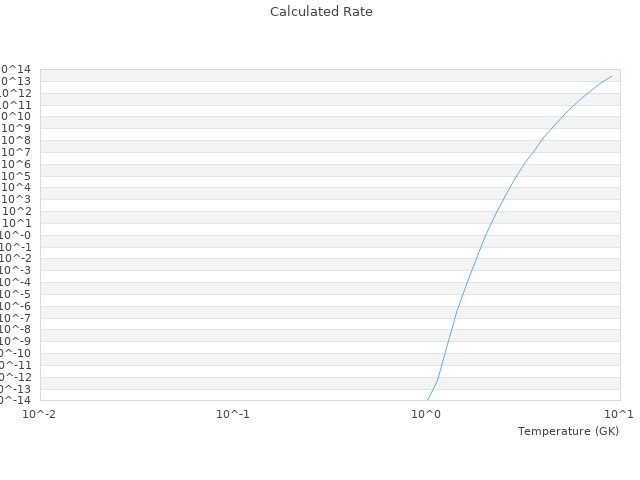

| View Graph | |
