Datapoints for cr51 -> he4 + ti47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.810838e-258 |
| 0.3 | 5.282998e-170 |
| 0.4 | 4.608721e-126 |
| 0.5 | 7.507293e-100 |
| 0.6 | 2.039299e-82 |
| 0.7 | 6.071514e-70 |
| 0.8 | 1.548968e-60 |
| 0.9 | 3.723216e-53 |
| 1 | 3.498774e-47 |
| 1.5 | 1.624645e-28 |
| 2 | 2.422194e-18 |
| 2.5 | 9.142672e-12 |
| 3 | 3.768490e-07 |
| 3.5 | 9.128219e-04 |
| 4 | 3.218766e-01 |
| 4.5 | 2.880944e+01 |
| 5 | 9.506245e+02 |
| 6 | 1.415270e+05 |
| 7 | 4.611160e+06 |
| 8 | 8.331276e+07 |
| 9 | 1.583740e+09 |
| 10 | 5.044574e+10 |

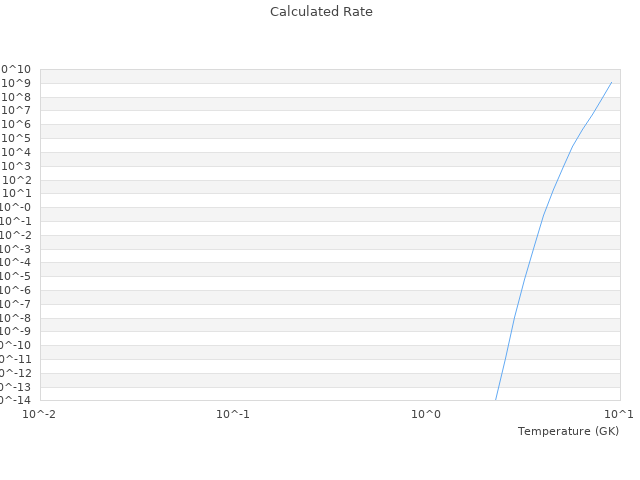

| View Graph | |
