Datapoints for p + ti49 -> v50
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.851867e-16 |
| 0.15 | 7.019146e-12 |
| 0.2 | 1.505131e-09 |
| 0.3 | 1.157464e-06 |
| 0.4 | 8.240803e-05 |
| 0.5 | 1.792679e-03 |
| 0.6 | 1.896719e-02 |
| 0.7 | 1.234854e-01 |
| 0.8 | 5.675247e-01 |
| 0.9 | 2.010015e+00 |
| 1 | 5.822583e+00 |
| 1.5 | 1.844688e+02 |
| 2 | 1.137914e+03 |
| 2.5 | 3.310700e+03 |
| 3 | 6.513373e+03 |
| 3.5 | 1.028525e+04 |
| 4 | 1.425426e+04 |
| 4.5 | 1.821206e+04 |
| 5 | 2.205865e+04 |
| 6 | 2.918287e+04 |
| 7 | 3.502237e+04 |
| 8 | 3.860419e+04 |
| 9 | 3.887154e+04 |
| 10 | 3.532740e+04 |

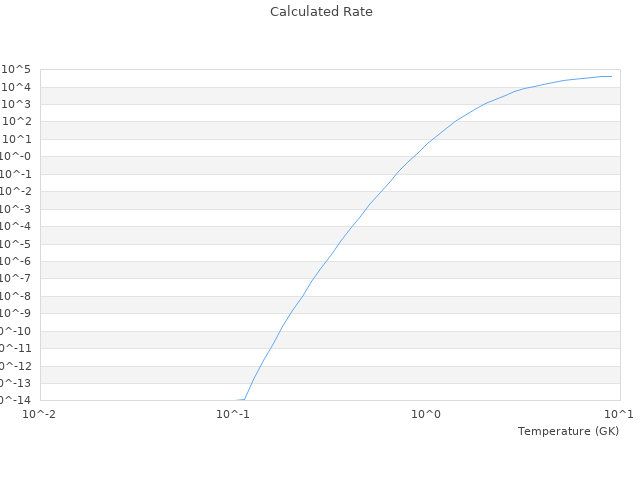

| View Graph | |
