Datapoints for cr54 -> he4 + ti50
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-314 |
| 0.2 | 4.568283e-233 |
| 0.3 | 1.717233e-152 |
| 0.4 | 1.371012e-112 |
| 0.5 | 7.142560e-89 |
| 0.6 | 3.736909e-73 |
| 0.7 | 6.074520e-62 |
| 0.8 | 1.642826e-53 |
| 0.9 | 6.575118e-47 |
| 1 | 1.421115e-41 |
| 1.5 | 6.328146e-25 |
| 2 | 7.942285e-16 |
| 2.5 | 6.586341e-10 |
| 3 | 9.997117e-06 |
| 3.5 | 1.215585e-02 |
| 4 | 2.623242e+00 |
| 4.5 | 1.639062e+02 |
| 5 | 4.127493e+03 |
| 6 | 4.206482e+05 |
| 7 | 1.045083e+07 |
| 8 | 1.484570e+08 |
| 9 | 2.186063e+09 |
| 10 | 5.165820e+10 |

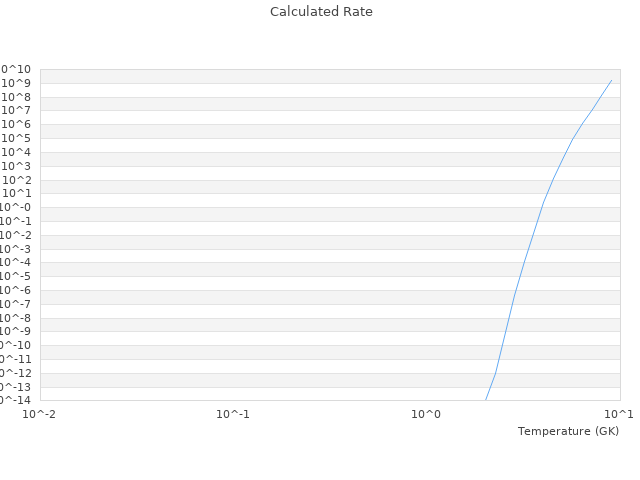

| View Graph | |
