Datapoints for p + ti52 -> he4 + sc49
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.806675e-26 |
| 0.15 | 1.006063e-21 |
| 0.2 | 4.073032e-19 |
| 0.3 | 8.409660e-16 |
| 0.4 | 1.412863e-13 |
| 0.5 | 6.845056e-12 |
| 0.6 | 1.547447e-10 |
| 0.7 | 2.075827e-09 |
| 0.8 | 1.900278e-08 |
| 0.9 | 1.298283e-07 |
| 1 | 7.037626e-07 |
| 1.5 | 3.426949e-04 |
| 2 | 1.891399e-02 |
| 2.5 | 3.283798e-01 |
| 3 | 2.834350e+00 |
| 3.5 | 1.549249e+01 |
| 4 | 6.179598e+01 |
| 4.5 | 1.966510e+02 |
| 5 | 5.296418e+02 |
| 6 | 2.709227e+03 |
| 7 | 1.017153e+04 |
| 8 | 3.139826e+04 |
| 9 | 8.519175e+04 |
| 10 | 2.117229e+05 |

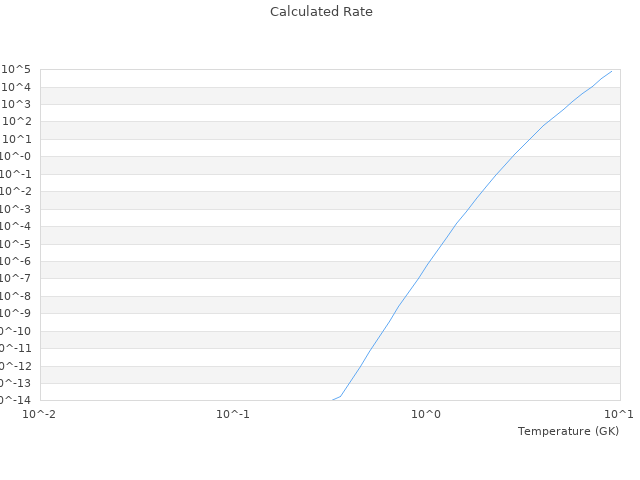

| View Graph | |
