Datapoints for p + ti68 -> v69
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.457089e-20 |
| 0.15 | 5.541160e-16 |
| 0.2 | 1.164477e-13 |
| 0.3 | 8.033350e-11 |
| 0.4 | 5.304935e-09 |
| 0.5 | 1.114597e-07 |
| 0.6 | 1.174280e-06 |
| 0.7 | 7.783297e-06 |
| 0.8 | 3.701676e-05 |
| 0.9 | 1.373423e-04 |
| 1 | 4.207209e-04 |
| 1.5 | 1.917020e-02 |
| 2 | 1.816442e-01 |
| 2.5 | 8.278580e-01 |
| 3 | 2.549484e+00 |
| 3.5 | 6.229765e+00 |
| 4 | 1.312274e+01 |
| 4.5 | 2.492800e+01 |
| 5 | 4.379035e+01 |
| 6 | 1.123116e+02 |
| 7 | 2.326332e+02 |
| 8 | 3.920045e+02 |
| 9 | 5.330390e+02 |
| 10 | 5.771733e+02 |

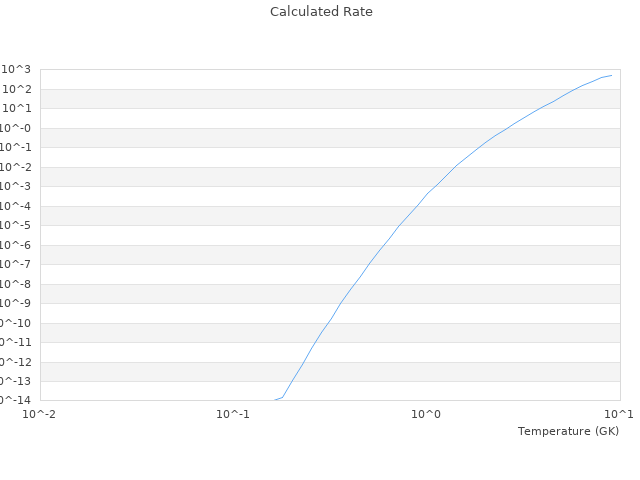

| View Graph | |
